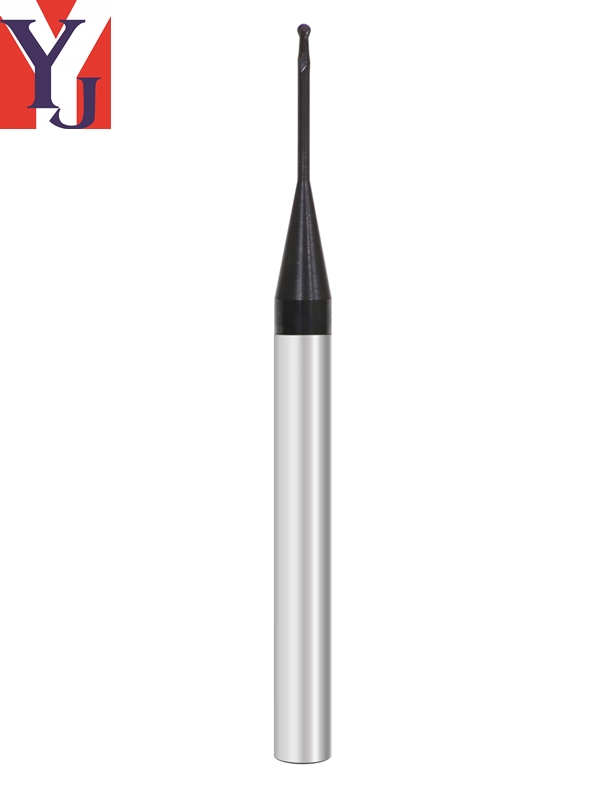

Long Neck Short Flute Ball Nose End Mills - 2 Flutes
YJ2BNA~I
Helix Angle
Helix Angle 35
| Item Code | R徑 (Radius, D1) | ENGLISH-Flute Length, L1 | 有效長(Effective Length, L3) | Shank Diameter, D2 | Overall Length, L2 |
| YJ2BNA-020 | R0.20 | 0.6 | 2 | 4 | 50 |
| YJ2BNB-040 | R0.25 | 0.8 | 4 | 4 | 50 |
| YJ2BNC-060 | R0.30 | 1.0 | 6 | 4 | 50 |
| YJ2BND-080 | R0.40 | 1.2 | 8 | 4 | 50 |
| YJ2BNE-100 | R0.50 | 1.2 | 10 | 4 | 50 |
| YJ2BNF-120 | R0.75 | 1.7 | 12 | 4 | 50 |
| YJ2BNG-140 | R0.10 | 2.2 | 14 | 4 | 50 |
| YJ2BNH-160 | R1.50 | 3.2 | 16 | 4 | 75 |
| YJ2BNI-200 | R2.0 | 4.2 | 20 | 6 | 75 |
