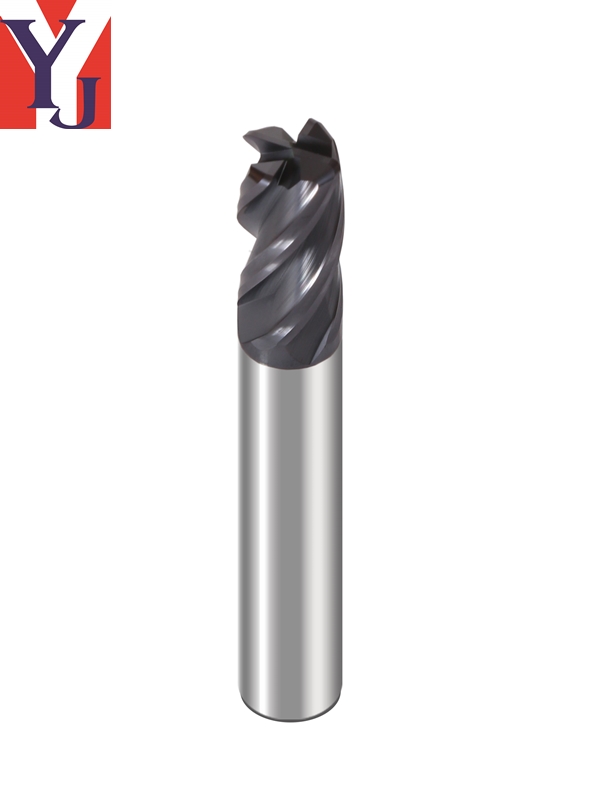

Long Shank Corner Radius End Mills - 4 Flutes
YJ4CSA~I / YJ2CSU~Z
Helix Angle
Helix Angle 35
| Item Code | 刃徑(Outside Diameter, D1) | R徑 (Radius, 1/2 D1) | ENGLISH-Flute Length, L1 | Shank Diameter, D2 | Overall Length, L2 |
| YJ4CSA-020 | 1.0 | 0.2 | 2 | 4 | 75 |
| YJ4CSB-050 | 1.5 | 0.5 | 3 | 4 | 75 |
| YJ4CSC-050 | 2.0 | 0.5 | 4 | 4 | 75 |
| YJ4CSD-050 | 2.5 | 0.5 | 5 | 4 | 75 |
| YJ4CSE-050 | 3.0 | 0.5 | 6 | 4 | 75 |
| YJ4CSF-050 | 4.0 | 0.5 | 8 | 4 | 75 |
| YJ4CSG-050 | 5.0 | 0.5 | 10 | 6 | 75 |
| YJ4CSH-050 | 6.0 | 0.5 | 12 | 6 | 75 |
| YJ4CSI-050 | 8.0 | 0.5 | 16 | 8 | 75 |
| YJ4CSU-050 | 4.0 | 0.5 | 8 | 6 | 100 |
| YJ4CSV-100 | 5.0 | 1.0 | 10 | 6 | 100 |
| YJ4CSW-100 | 6.0 | 1.0 | 12 | 6 | 100 |
| YJ4CSX-100 | 8.0 | 1.0 | 16 | 8 | 100 |
| YJ4CSY-100 | 10.0 | 1.0 | 20 | 10 | 100 |
| YJ4CSZ-150 | 12.0 | 1.5 | 24 | 12 | 100 |
