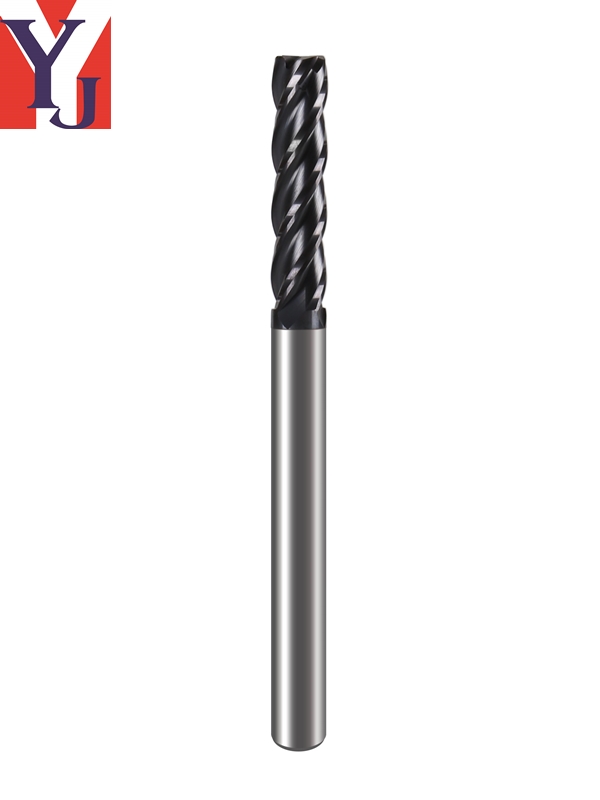

Long Shank Square Endmills - 4 Flutes
YJ4QSW / X / Y / Z
Helix Angle
Helix Angle 35
| Item Code | english*Outside Diameter, D1 | ENGLISH-Flute Length, L1 | Shank Diameter, D2 | Overall Length, L2 |
| YJ4QSW-010 | 1 | 3 | 4 | 75 |
| YJ4QSW-015 | 1.5 | 4.5 | 4 | 75 |
| YJ4QSW-020 | 2 | 6 | 4 | 75 |
| YJ4QSW-025 | 2.5 | 7 | 4 | 75 |
| YJ4QSW-030 | 3 | 8 | 4 | 75 |
| YJ4QSW-035 | 3.5 | 10 | 4 | 75 |
| YJ4QSW-040 | 4 | 11 | 4 | 75 |
| YJ4QSW-045 | 4.5 | 13 | 6 | 75 |
| YJ4QSW-050 | 5 | 13 | 6 | 75 |
| YJ4QSW-055 | 5.5 | 13 | 6 | 75 |
| YJ4QSW-060 | 6 | 15 | 6 | 75 |
| YJ4QSW-065 | 6.5 | 17 | 8 | 75 |
| YJ4QSW-070 | 7 | 17 | 8 | 75 |
| YJ4QSW-075 | 7.5 | 17 | 8 | 75 |
| YJ4QSW-080 | 8 | 20 | 8 | 75 |
| YJ4QSX-030 | 3 | 8 | 6 | 100 |
| YJ4QSX-040 | 4 | 11 | 6 | 100 |
| YJ4QSX-050 | 5 | 13 | 6 | 100 |
| YJ4QSX-060 | 6 | 15 | 6 | 100 |
| YJ4QSX-070 | 7 | 17 | 8 | 100 |
| YJ4QSX-080 | 8 | 20 | 8 | 100 |
| YJ4QSX-090 | 9 | 23 | 10 | 100 |
| YJ4QSX-100 | 10 | 30 | 10 | 100 |
| YJ4QSX-110 | 11 | 28 | 12 | 100 |
| YJ4QSX-120 | 12 | 30 | 12 | 100 |
| YJ4QSY-080 | 8 | 20 | 8 | 150 |
| YJ4QSY-100 | 10 | 30 | 10 | 150 |
| YJ4QSY-120 | 12 | 30 | 12 | 150 |
| YJ4QSY-160 | 16 | 40 | 16 | 150 |
| YJ4QSY-200 | 20 | 40 | 20 | 150 |
