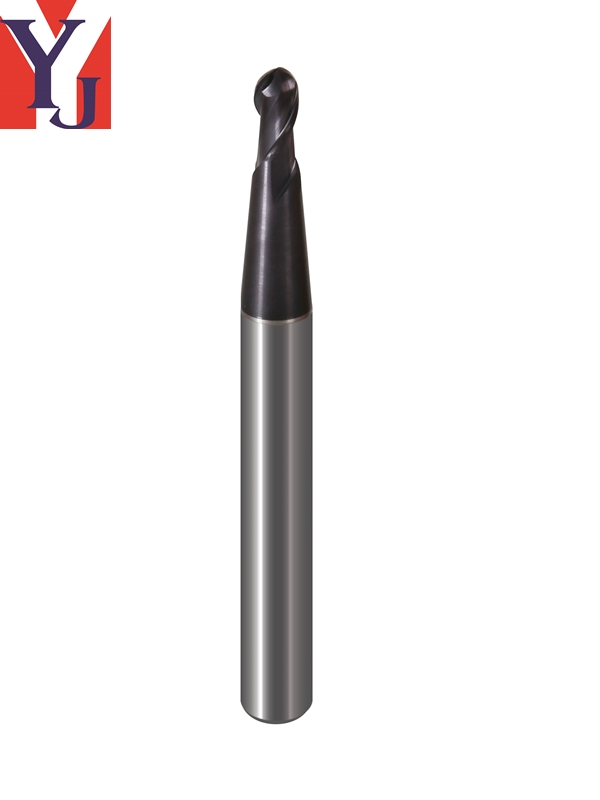

Long Taper Neck Ball Nose End Mills - 2 Flutes
YJ2BWA~H
Item Code | R徑(Radius, 1/2 D1) | 刃長 (Flute Length, L2) | 斜頸(Taper Neck, α) | 斜頸長( Taper Neck Length, L3 ) | Shank Diameter, D2 | 全長 (Overall Length, L1) |
YJ2BWA-300 | R0.5 | 2 | 3° | 32 | 6 | 100 |
YJ2BWB-500 | R1.0 | 4 | 5° | 27 | 6 | 100 |
YJ2BWC-300 | R1.5 | 6 | 3° | 35 | 6 | 100 |
YJ2BWD-300 | R2.0 | 8 | 3° | 28 | 6 | 100 |
YJ2BWE-500 | R3.0 | 12 | 5° | 35 | 10 | 100 |
YJ2BWF-500 | R4.0 | 16 | 5° | 39 | 12 | 100 |
YJ2BWG-300 | R5.0 | 20 | 3° | 40 | 12 | 100 |
YJ2BWH-500 | R6.0 | 24 | 5° | 47 | 16 | 100 |
