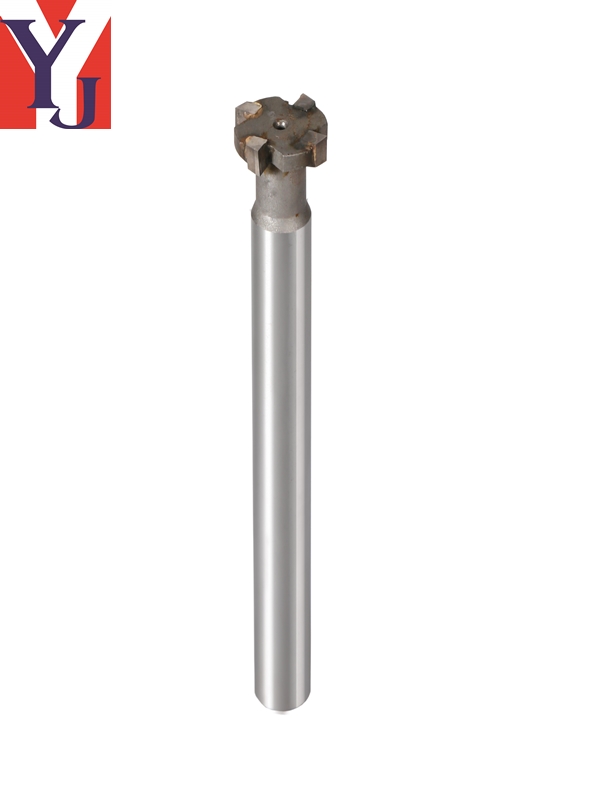

Welded Carbide T-Slot Milling Cutters-Staggered Teeth
YJT-G
| Item Code | 刀徑 (Outside Diameter, Ø) | 厚度 (Blade Thickness, H) | 刃數(Flute) | Shank Diameter, D2 | Overall Length, L2 |
| YJT16(3-12) | 16 | 3/4/5/6/8/10/12 | 4 | 12 | 100 |
| YJT20(3-12)G | 20 | 3/4/5/6/8/10/12 | 4 | 12 | 110 |
| YJT25(3-12)G | 25 | 3/4/5/6/8/10/12 | 6 | 16 | 110 |
| YJT30(3-12)G | 30 | 3/4/5/6/8/10/12 | 6 | 16 | 120 |
| YJT32(3-12)G | 32 | 3/4/5/6/8/10/12 | 6 | 16 | 120 |
| YJT35(3-12)G | 35 | 3/4/5/6/8/10/12 | 6 | 16 | 120 |
| YJT40(3-12)G | 40 | 3/4/5/6/8/10/12 | 6 | 20 | 130 |
| YJT45(3-12)G | 45 | 3/4/5/6/8/10/12 | 6 | 20 | 130 |
| YJT50(3-12)G | 50 | 3/4/5/6/8/10/12 | 8 | 25 | 130 |
| YJT60(3-12)G | 60 | 3/4/5/6/8/10/12 | 10 | 32 | 130 |
